How to identify topo-map features.

Unread postby Crazinamatese » Fri Apr 19, 2013 7:19 am

This is kinda in a nutshell, but hopefully this can help some of you who aren't very familiar with topo maps.

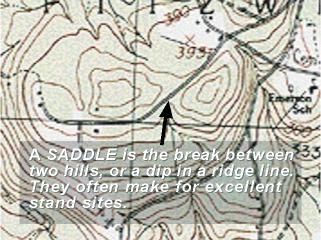

Saddle

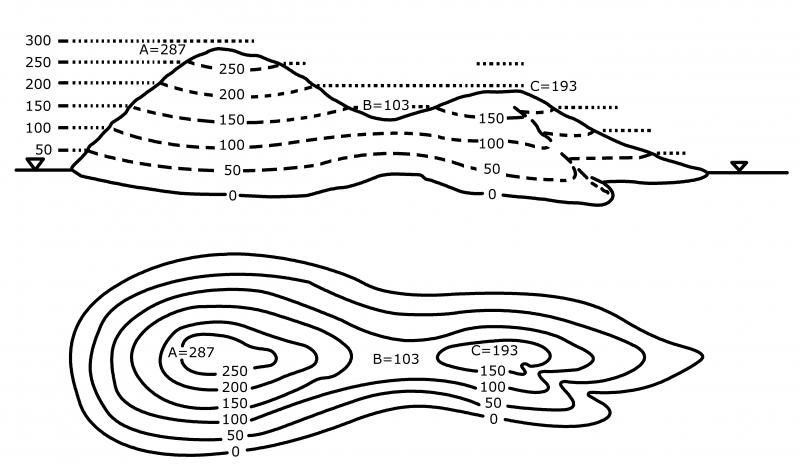

Contour lines showing elevation changes.




Numbers on contour lines show elevation.

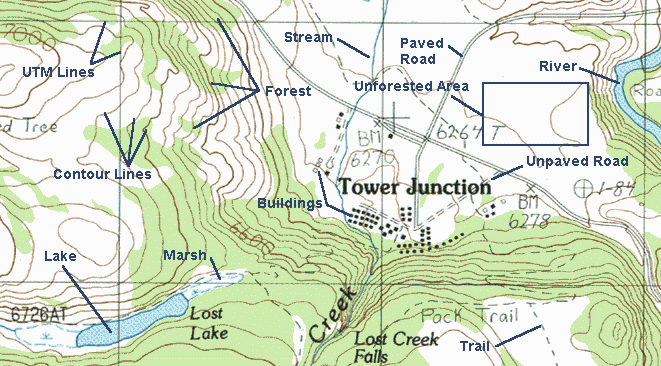

Some common features on a topo map.



Bench


The cave you fear hides the treasure you seek!!!
User avatar
Crazinamatese
Posts: 5600
Joined: Mon Jul 30, 2012 3:25 am
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Crazinamatese » Fri Apr 19, 2013 7:38 am

Hill top

A ridge line is a series of hill tops joined together by saddles.

Draw


Spurs.


Cliff


Water.
Last edited by Crazinamatese on Fri Apr 19, 2013 7:59 am, edited 2 times in total.
The cave you fear hides the treasure you seek!!!
User avatar
Dewey
Moderator
Posts: 31976
Joined: Thu Mar 11, 2010 7:57 pm
Location: Wisconsin
Status: Online

Re: How to identify topo-map features.

Unread postby Dewey » Fri Apr 19, 2013 7:41 am

Good stuff! That will really help many visualize exactly what they are looking at! 8-)

[ Post made via iPhone ] Image
User avatar
Crazinamatese
Posts: 5600
Joined: Mon Jul 30, 2012 3:25 am
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Crazinamatese » Fri Apr 19, 2013 8:20 am

I know for sure military-grade topo maps mark elevation in meters. Does anyone know if civilian-grade topo maps mark the elevations with meters or feet? That might cause some confusion and wanted to clear that up.
The cave you fear hides the treasure you seek!!!
dan
Site Owner
Posts: 38556
Joined: Sat Feb 13, 2010 6:11 am
Facebook: https://www.facebook.com/HuntingBeast/?ref=bookmarks
Location: S.E. Wisconsin
Contact:
Status: Offline

Re: How to identify topo-map features.

Unread postby dan » Fri Apr 19, 2013 11:06 am

Crazinamatese wrote:I know for sure military-grade topo maps mark elevation in meters. Does anyone know if civilian-grade topo maps mark the elevations with meters or feet? That might cause some confusion and wanted to clear that up.

I always thought they were all measured in feet... I might need to look closer at the map legend next time I read one.
User avatar
Jackson Marsh
Moderator
Posts: 16591
Joined: Tue Aug 17, 2010 3:11 am
Location: SE WI
Status: Online

Re: How to identify topo-map features.

Unread postby Jackson Marsh » Fri Apr 19, 2013 11:16 am

Good info, thanks CM!

[ Post made via Android ] Image
KLEMZ
Posts: 1498
Joined: Wed Jan 26, 2011 2:28 am
Location: SE Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby KLEMZ » Fri Apr 19, 2013 12:01 pm

I am clear on everything except... what is the difference between "marsh or swamp" and "submerged marsh or swamp"? The map symbols look quite the same to my brain?
User avatar
Crazinamatese
Posts: 5600
Joined: Mon Jul 30, 2012 3:25 am
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Crazinamatese » Fri Apr 19, 2013 2:11 pm

dan wrote:
Crazinamatese wrote:I know for sure military-grade topo maps mark elevation in meters. Does anyone know if civilian-grade topo maps mark the elevations with meters or feet? That might cause some confusion and wanted to clear that up.

I always thought they were all measured in feet... I might need to look closer at the map legend next time I read one.

It will tell you in the Legend. Also, remember there is also a contour interval. The index contour line will give you the elevation and the intermediate contour lines all have a specific interval in between them. Usually 10-20 feet or meters. This is a good way to make a range-card for your hunting tree.
The cave you fear hides the treasure you seek!!!
User avatar
Crazinamatese
Posts: 5600
Joined: Mon Jul 30, 2012 3:25 am
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Crazinamatese » Fri Apr 19, 2013 2:14 pm

KLEMZ wrote:I am clear on everything except... what is the difference between "marsh or swamp" and "submerged marsh or swamp"? The map symbols look quite the same to my brain?

The pic is small to tell, but the submerged marsh square is filled in with light blue with the little blue lily pads and the regular marsh is white with the blue lily pads.
The cave you fear hides the treasure you seek!!!
gogebicbuckslayer
Posts: 306
Joined: Wed Dec 19, 2012 2:29 pm
Location: cedar springs michigan
Status: Offline

Re: How to identify topo-map features.

Unread postby gogebicbuckslayer » Fri Apr 19, 2013 2:39 pm

Dan, might be a dumb question? But what do you mean by range card?

[ Post made via Android ] Image
User avatar
DEERSLAYER
Super Moderator
Posts: 8115
Joined: Sun Mar 14, 2010 3:22 pm
Location: Western L.P. of MI
Contact:
Status: Offline

Re: How to identify topo-map features.

Unread postby DEERSLAYER » Fri Apr 19, 2013 3:38 pm

Crazinamatese wrote:I know for sure military-grade topo maps mark elevation in meters. Does anyone know if civilian-grade topo maps mark the elevations with meters or feet? That might cause some confusion and wanted to clear that up.

Feet. Nice short, clear easy to understand tutorial Crazinamatese. I'm sure it will help many members. 8-)
You cannot invade mainland America. There would be a rifle behind every blade of grass.
Isoroku Yamamoto, Japanese Admiral
User avatar
Crazinamatese
Posts: 5600
Joined: Mon Jul 30, 2012 3:25 am
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Crazinamatese » Fri Apr 19, 2013 4:43 pm

gogebicbuckslayer wrote:Dan, might be a dumb question? But what do you mean by range card?

[ Post made via Android ] Image


In the Army Infantry, we would draw a range card of your sectors of fire when we set up a patrol base. distances, obstacles, fields of fire and so on. Its not a hunting term at all. I really don't sit and draw a range card while hunting either, but I will zap distances with my range finder and use things as range markers too. I will keep that mental note in a way that I just refer it as a 'range card'. Anyways, using the topo map and counting the intervals on the intermediate contour lines and index lines, if I know where a buck bed is, and use a topo map to guess the distance from where I could set up, or get an idea of why that buck is at that elevation without getting in there and polluting the area. Its something I really never thought of until recently. I just need to make sure the map I use is legit.
The cave you fear hides the treasure you seek!!!
User avatar
MOBIGBUCKS
Posts: 3001
Joined: Tue Mar 09, 2010 4:21 pm
Status: Offline

Re: How to identify topo-map features.

Unread postby MOBIGBUCKS » Sat Apr 20, 2013 1:45 am

Great write up CZ!!!
User avatar
Crazinamatese
Posts: 5600
Joined: Mon Jul 30, 2012 3:25 am
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Crazinamatese » Sat Apr 20, 2013 7:27 am

A couple more.

Depression


Good way to remember terrain features.
The cave you fear hides the treasure you seek!!!
User avatar
Timmy
Posts: 342
Joined: Thu Jan 31, 2013 1:43 pm
Location: Wisconsin
Status: Offline

Re: How to identify topo-map features.

Unread postby Timmy » Sat Apr 20, 2013 7:41 am

That helps clear up some things for me, thanks
